Specifications
Rated voltage | 36 V |
Max. voltage | 40 V |
Power consumption | 1 kW |
Power | 0.76 kW 1) |
Recommended battery | AP 200 S |
Cordless power system | AP |
Stroke rate² | 4300 / 4000 rpm |
Device weight without battery | 10.4 / 11.5 lb 2) |
Cutting length | 60 cm |
Tooth spacing | 34 mm |
Max. battery working time AP 20 | 50 min 3) |
Max. battery working time AP 30 | 91 min 3) |
Max. battery working time AP 100 | 32 min 3) |
Max. battery working time AP 200 | 64 min 3) |
Max. battery working time AP 200 S | 64 min 3) |
Max. battery working time AP 300 | 77 min 3) |
Max. battery working time AP 300 S | 95 min 3) |
Max. battery working time AP 500 S | 114 min 3) |
Max. battery working time AR 2000 L | 370 min 3) |
Max. battery working time AR 3000 L | 555 min 3) |
Max. device length with tool | 208 / 219 cm |
IP Rating | IPX4 |
Max. battery working time AR 1000 | 215 min 3) |
Max. battery working time AR 2000 | 310 min 3) |

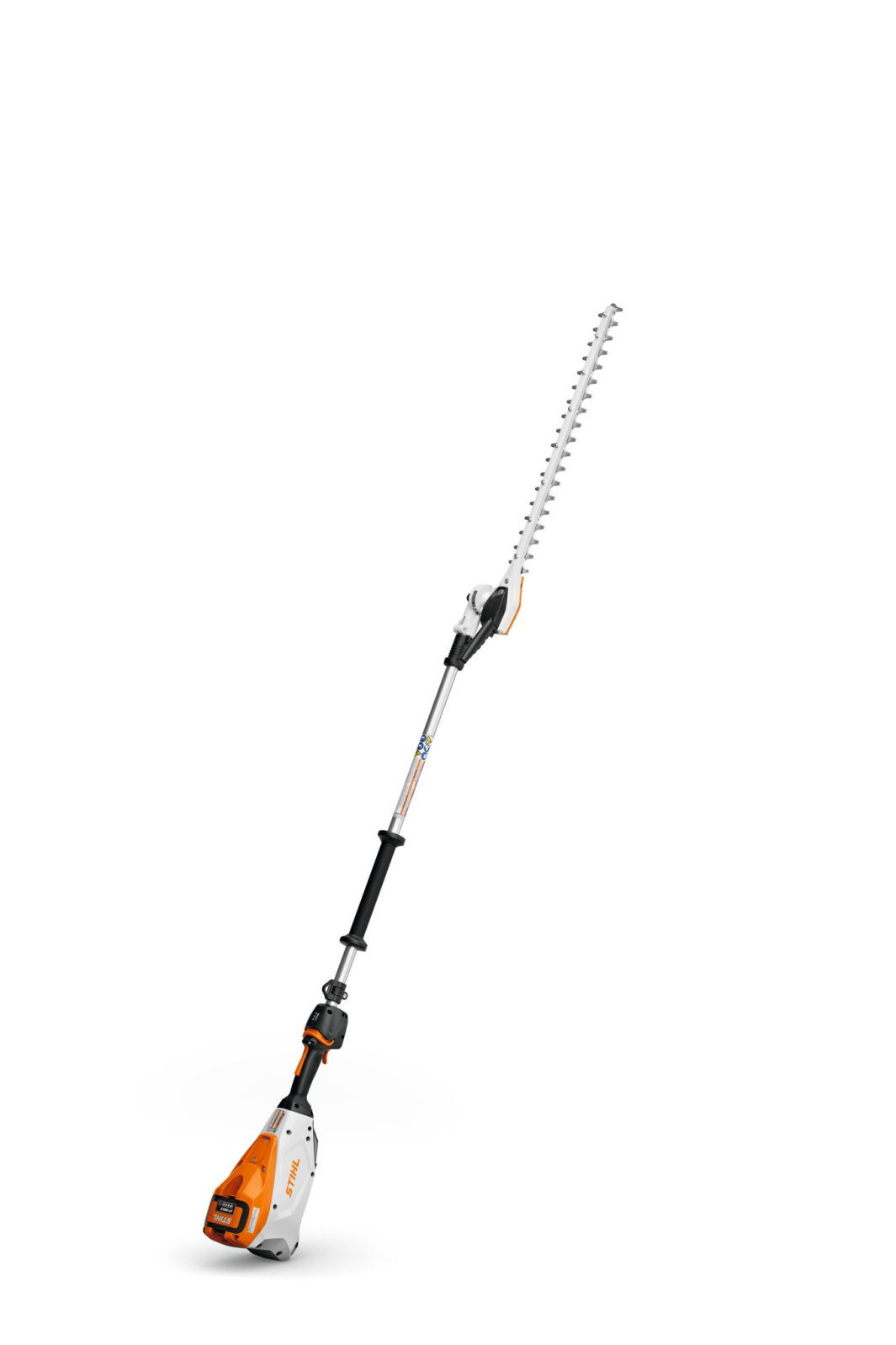

STIHL HLA 135 K Battery Powered Extended-Reach Hedge Trimmer
Features
The HLA 135 K (0°) extended-reach hedge trimmer lets pros enjoy the clean, quiet benefits of battery-powered equipment without compromising performance and durability thanks to zero exhaust emissions and low noise.
Built using the same shaft, gearbox, and blades as found on its gas counterpart, this trimmer—the lightest HLA 135—combines a proven, durable weather-resistant design with STIHL battery power.
With a short shaft (designated by K), a zero-degree fixed blade for precision trimming.
A variable-speed trigger with three performance levels, you can take on jobs with the versatility and performance you demand.
The powerful brushless motor is virtually maintenance free. The onboard battery slot can support either an onboard battery or a backpack battery for even longer run times.
The blade cover helps protect the cutting blade during storage and transport.
The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL.
The compact, ergonomic design provides more comfortable use.
The dual-ground blade system provides a clean cut and is ideal for cutting through stronger, thicker branches.
STIHL hedge trimmers with double-sided cutting blades cut both directions.
The ergonomic loop handle is ideal for making cuts in any direction.
The housing has smooth surfaces and round contours that help to keep it from getting caught on branches during use. The design also makes cleaning easy.
Housings are lightweight, withstand greater impact, and are corrosion-resistant.
This tool is IPX4-rated weather-resistant construction and has been designed and tested for splash water protection.
Each blade is laser cut and ground using diamond discs. The hardened cutting edges are highly resilient and remain sharp for a longer period of time.
This product is lightweight for easy portability, great maneuverability, and extended use.
A majority of STIHL products sold in America are made in America of U.S. and global materials.
Having easy access to all of the controls on one comfortable handle helps makes it easier to complete tasks so the operator’s hand never has to leave the handle.
The onboard metal air filter protects the motor and electronics from large debris.
This product features an onboard battery slot to easily allow use with an onboard cartridge-style battery or backpack battery.
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
STIHL battery-powered products feature a retaining latch that prevents the unit from unintentional starts when the battery is inserted.
Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
The variable-speed trigger allows precise control for each task.
